Kitamura - Double column machining center - Serie G

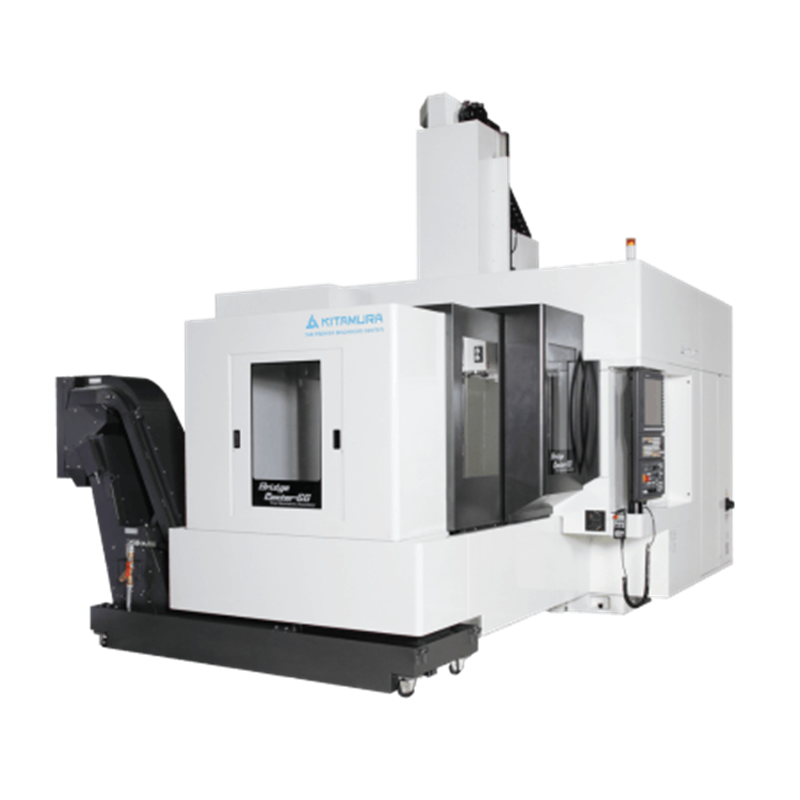

Bridgecenter-6G#50

Kitamura Bridgecenter-6G #50 is a 3-axis double-column vertical machining center engineered to deliver outstanding rigidity, precision, and machining capacity for large and heavy components. It features 1,530 x 1,095 x 710 mm travels, a 900 x 1,800 mm table with a load capacity of up to 2,994 kg (6,600 lb), and a powerful 12,000 rpm NST #50 dual-contact, 4-step gear-driven spindle, providing excellent performance for both heavy-duty cutting and high-precision machining. Its rigid Meehanite cast-iron construction with induction-hardened solid box ways, linear scale feedback on all three axes, rapid traverse rates of up to 24 m/min, and positioning accuracy of ±0.002 mm ensure exceptional stability and reliability. Equipped with Kitamura’s advanced Arumatik-Mi CNC control and a standard 40-tool capacity, expandable to 60 or 80 tools, the Bridgecenter-6G #50 is an ideal solution for die/mold, aerospace, and defense applications requiring consistent accuracy and high performance when machining large workpieces.
