Kitamura - Horizontal machining center - HX-IG
HX500iG/630 #40

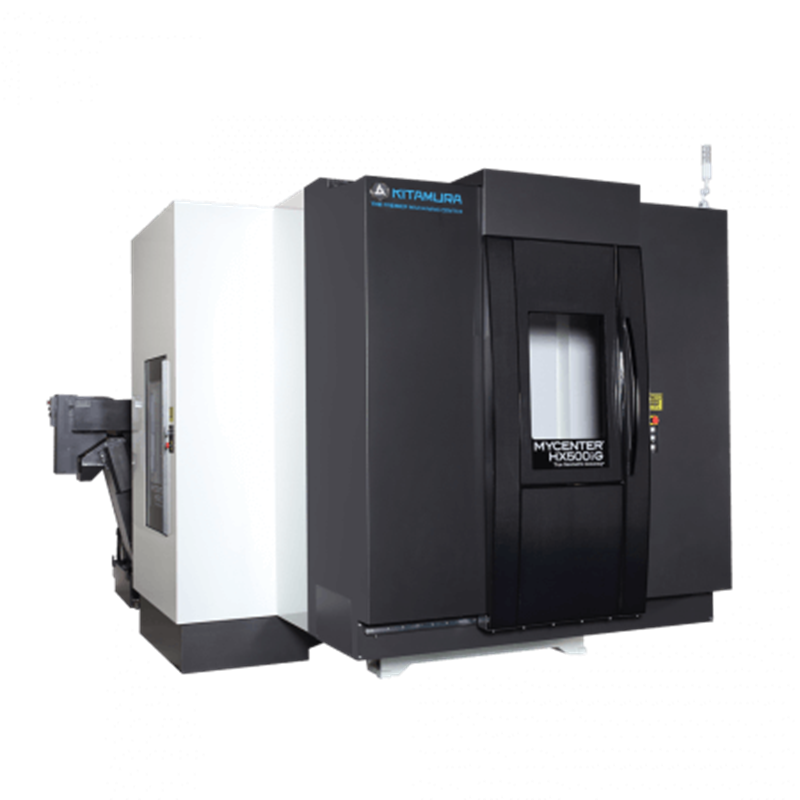

Kitamura Mycenter-HX500iG/630 #40 is a 4-axis horizontal machining center engineered to deliver high productivity, rigidity, and precision when machining medium to large components. It features 870 x 800 x 930 mm travels, a 500 x 500 mm table, and a powerful 20,000 rpm NST #40 dual-contact, 4-step gear-driven spindle, providing the speed and cutting capability required for demanding applications. Its rigid solid box way construction, twin ballscrew design on the X/Y axes, scale feedback on all axes, and rapid traverse rates of up to 60 m/min help achieve positioning accuracy of ±0.001 mm and repeatability of ±0.0005 mm. With a standard 50-tool capacity, expandable up to 300 tools, a 2-station automatic pallet changer, and additional automation options, the HX500iG/630 #40 is an ideal solution for manufacturers seeking high-volume production, consistent precision, and the flexibility to machine larger workpieces and challenging materials.
We support you through every stage of your project:
We work hand in hand with your team, providing you with:
- Assistance in identifying your needs
- Creating customized technological and financial solutions within 48 hours
- Logistics and implementation control at your company
- Training and coaching to maximize your team's productivity and profitability
- Technical support from our internationally certified engineers
